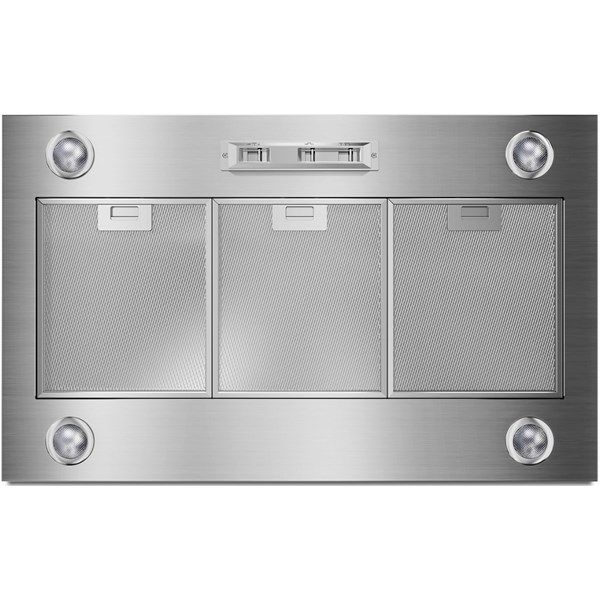

Whirlpool36″ 585 or 1170 CFM Motor Class Custom Hood Liner
- Three-Speed Fan – Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
- Requires 585 or 1170 CFM Motor Class Blower – Allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.
- 65,000 BTU Rating – Pairs with ranges or cooktops of comparable width with total burner outputs up to 65,000 BTU. Rating based on installation with 585 CFM Motor Class Blower; 1170 CFM Motor Class Blower also available. Both blower options sold separately.
- 105,000 BTU Rating – pairs with KitchenAid Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
- Four LED Lights with Night Light Setting – Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
- Removable Filters – Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
| Feature | Value |
| FingerPrint Resistant Finish/Smudge-Proof | No |
| Max. CFM | 1200 |
| Code Compliance Control | No |
| ADA Compliant | No |
| Hood Type | Cabinet Insert |
| Hood Style | Standard |
| Mounting Type | Custom Insert |
| Blower Type | Internal |
| Blower Included | No |
| Venting Type | Convertible |
| Color | Stainless |
| Energy Star | No |
| Lighting Type | LED |
| Hood Filter Type | Baffle Filter |
| Lighting Levels | 1 |
| Hood Fan Speeds | 3 |
| Bulb Included | Yes |
| Approved for Outdoor Use | No |
| CFM's | 1170 |
| Width (Size) | 36 |
| Height | 11.5 |
| Depth | 11 |
| Width | 36 |
| Wi-Fi Enabled | No |
| GTIN | 883049569505 |
| Web Title | 36 inch Custom Hood Liner 585 or 1170 CFM Motor |
| Shipping Weight | 45 |
| Carton Height | 14 |
| Carton Length | 13 |
| Carton Width | 34 |
