Description

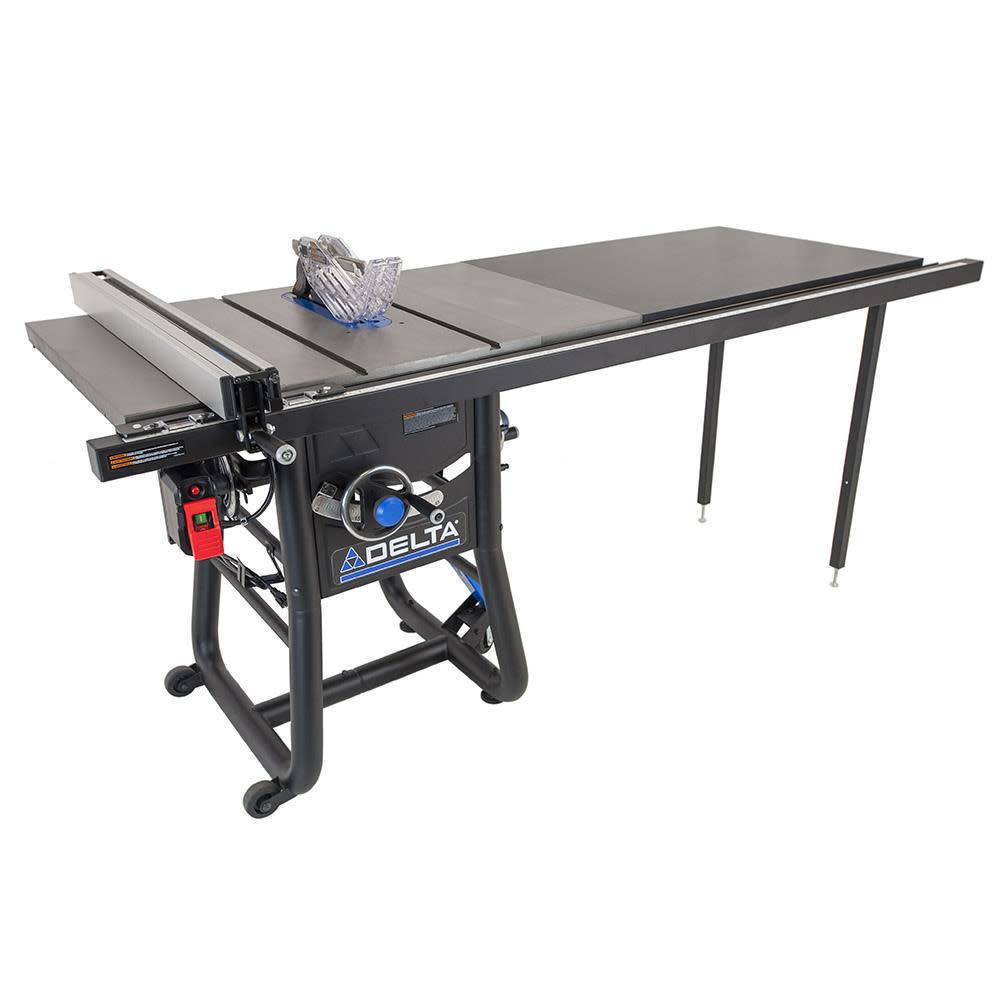

Delta 10″ Contractor Table Saw with 52″ Rip Capacity and Cast Iron Extension Wings
With more than ninety years of design, knowledge and innovation, delta’s 5000 series table saws have unmatched professional grade features that address the needs of the most discerning woodworker. Woodworkers looking to advance beyond a basic table saw will appreciate the power, precision and enduring quality of these saws.
Features
10-In left-tilt table saw with BIESEMEYER style fence

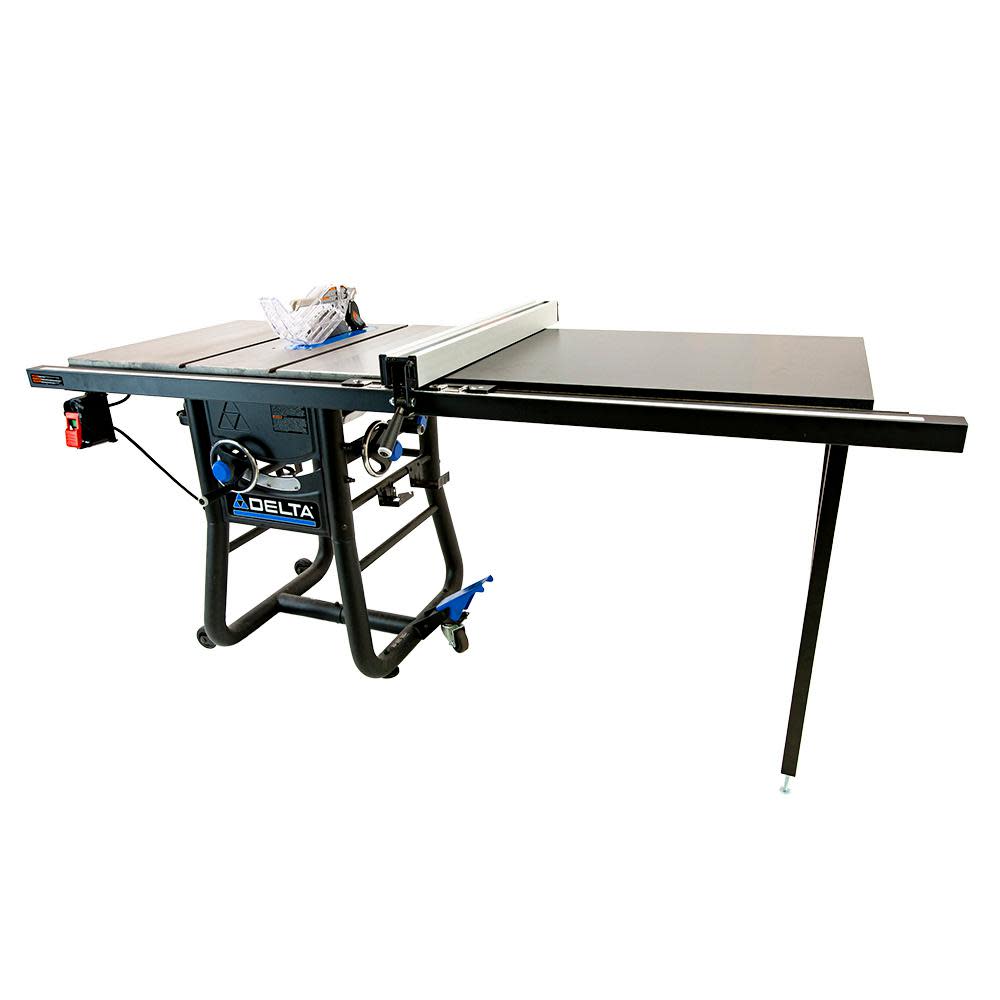

52-In right rip with cast iron base table and cast iron wings with extension board
15-Amp, heavy duty motor
2.5-In dust port connects to a vacuum or a dust collector

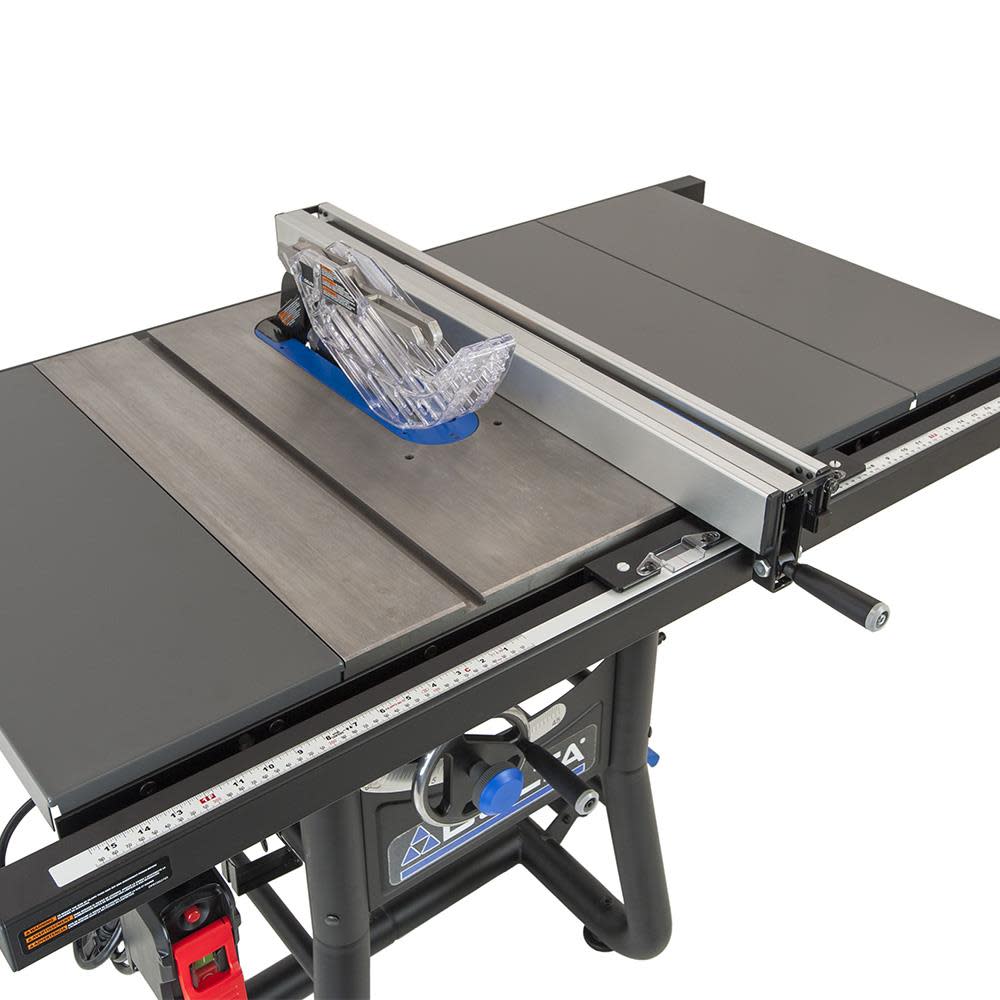

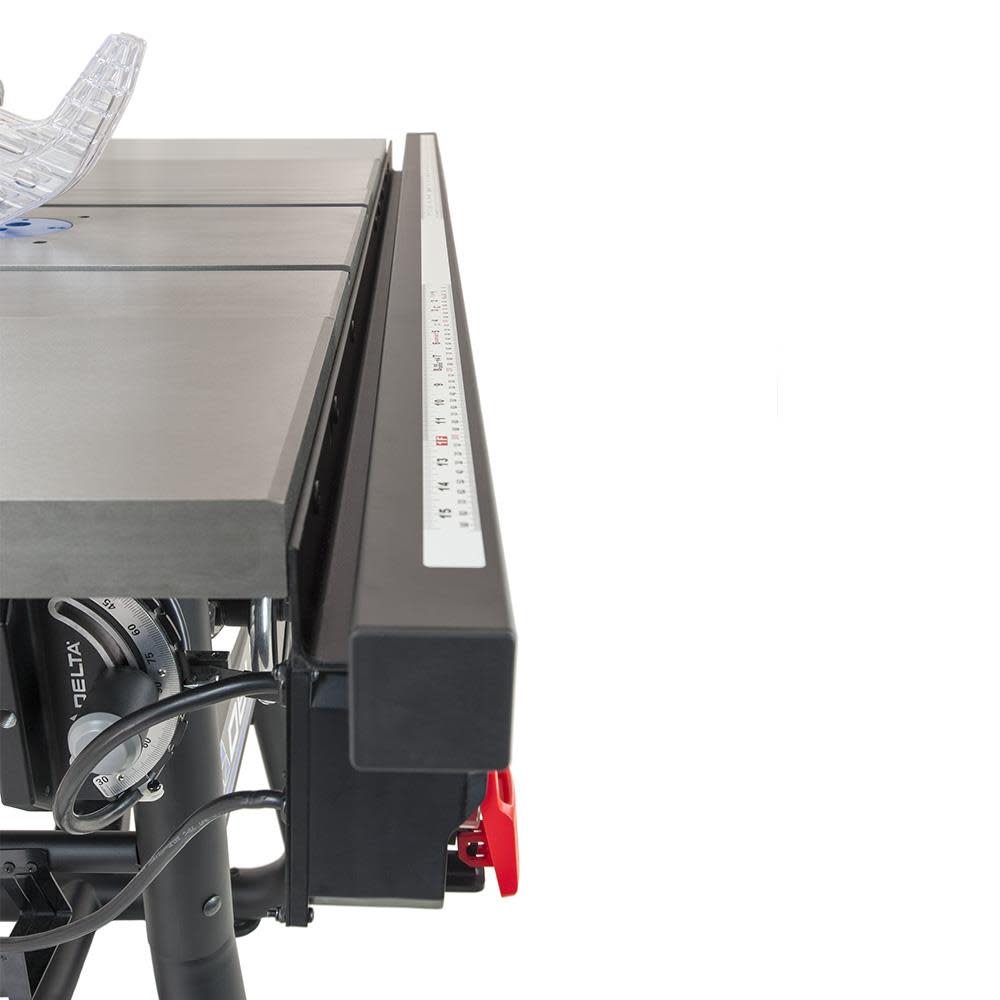

BIESEMEYER style, T-Square, large rip fence locks and unlocks with 1 hand
Heavy-duty cast iron table for smooth running
1 Swivel wheel and 2 fixed wheels make it easy to move saw around the shop or garage

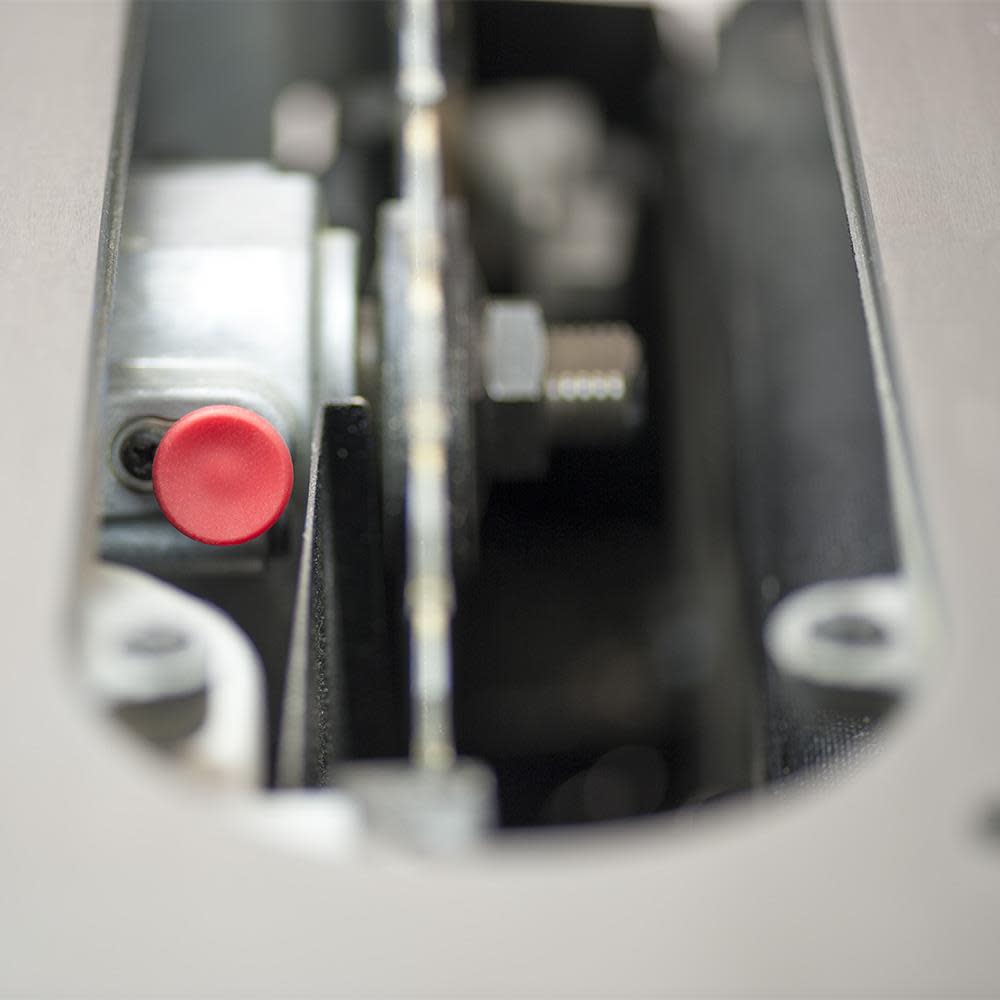

Built-in arbor lock for quick and easy blade changes
Steel miter gauge with twin miter slots
Rip capacity 15 in. left and 52 in. right of blade
Specifications
Acme Tools Brand Name
DELTA
Acme Tools Part Number
36-5152T2
Amperage (A)
15
Arbor Size (in)
0.625
Assembled Weight (lbs)
277
Bench or Stationary
Stationary
Bevel Direction
Left Bevel
Blade Diameter (in)
10
Blade Material
Carbide
Blade Speed (rpm)
3650
California Proposition 65 Warning Required
Yes
Caster Platform Included
Yes
Color / Finish
Gray, Black
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Diameter
10 in
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
2.5
ETL Listed
No
Fence Included
Yes
Flesh Sensing System
No
Horsepower (hp)
1.75
Internal Supplier Part #
36-5152T2
Internet Product Code (IPC)
5ACE65661BA
Manufacturer Warranty
5
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.8125
Micro Adjust Fence
No
Miter Gauge
Yes
Miter Slot Width
0.75
Motor Bearings
Yes
Net Tool Weight (lbs)
277
Number of Miter Slots
2
Package Contents
Saw, fence, miter gauge, wings, push stick, blade, guard, blade bold, wrench, Table board, Leg set
Package Depth
42.51
Package Height
23.03
Package Weight
238
Package Weight (lbs)
278
Phase
Single Phase
Size
0.625 in
Table Height (in)
37
Table Height From Floor (In)
37
Table Length (in)
27
Table Material
Cast Iron
Table Space in Front of Blade
11.5
Table Width (in)
20
UL Listed
Yes
Voltage
115/230 Volts
